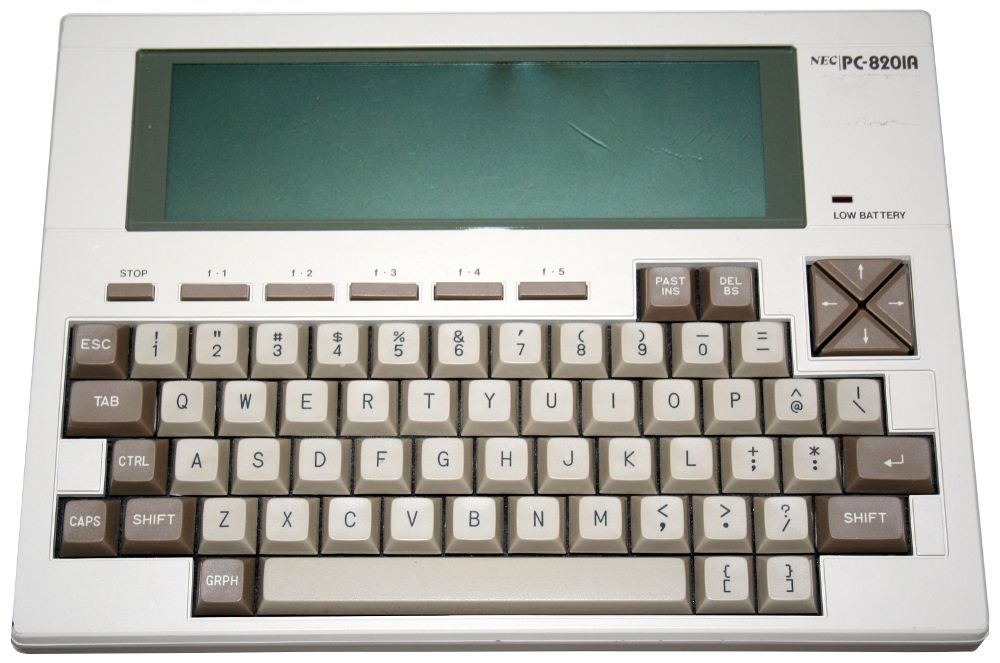

| Name | PC-8201A |
|
|
| Manufacturer | Nec () | Type | Desktop |
| Production start (mm-yyyy) | 1984 | Production end (mm-yyyy) | - |
| RAM | 16 KB up to 128 KB | ROM | 32 KB |
| CPU | Intel 80C85 - 2.4 Mhz | ||
| Operating System | |||
| Text (Cols x Rows) | 40 x 8 | ||
| Graphics | 240 x 64 | ||
| Sound | 4 channels, 3.5 octaves | ||
| Storage memory | |||
| Serial port | Parallel port | ||
| Others port | RS 232 (DSUB 25 pin type), SIO1, SIO2 connectors, 8 pin duPont BERG modular jack - 3 megabytes/minute max transfer CMT socket - 8 pin DIN plug for cassette recorder, Standard centronics printer port, Bar code reader socket - 9 pin DSUB connector, SYSTEM SLOT - for ram cartridges (programs, software etc.) | ||
| Original price | Currency original price | ||
| Units sold | |||
| Note | |||
| Configurations | |||
| User | F_FABRIZIO | ||
